Clivet RS485 connections

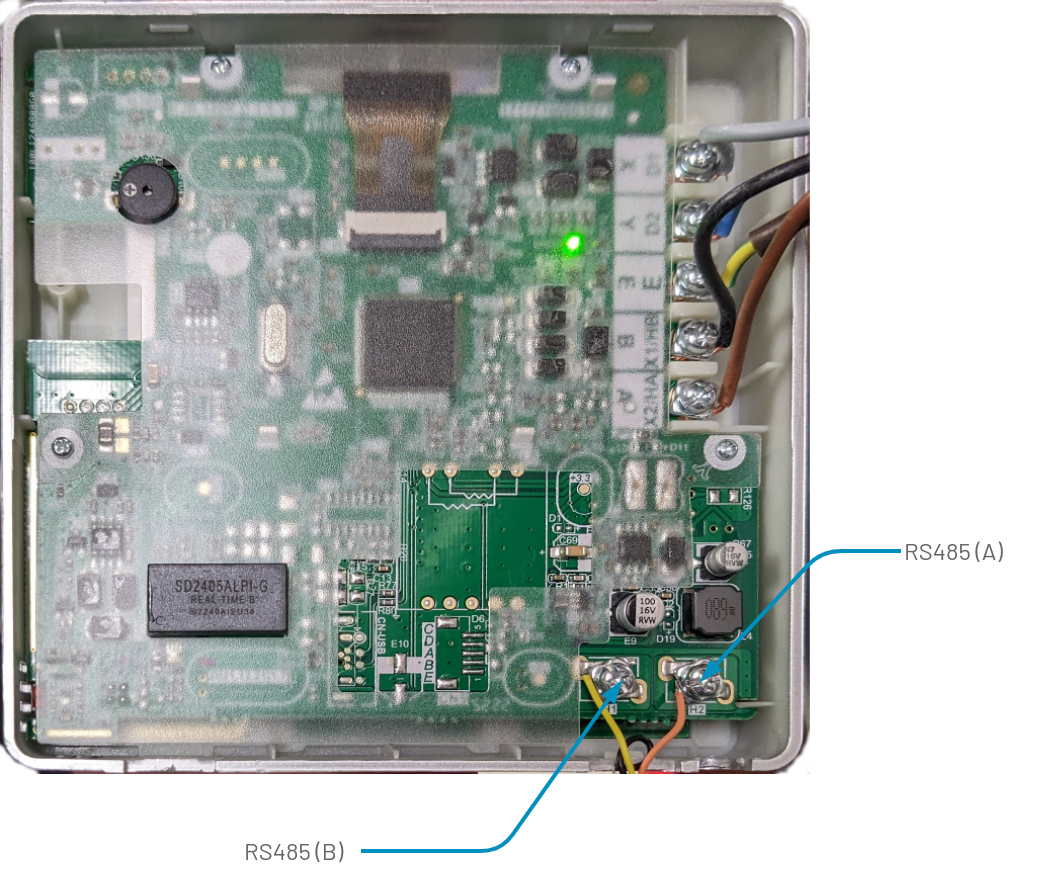

The Clivet heat pumps have the RS485 connections within the indoor controller.

In the Clivet indoor controller make the following RS485 Modbus connections:

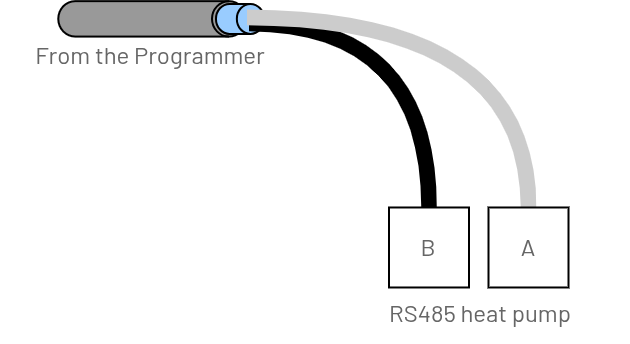

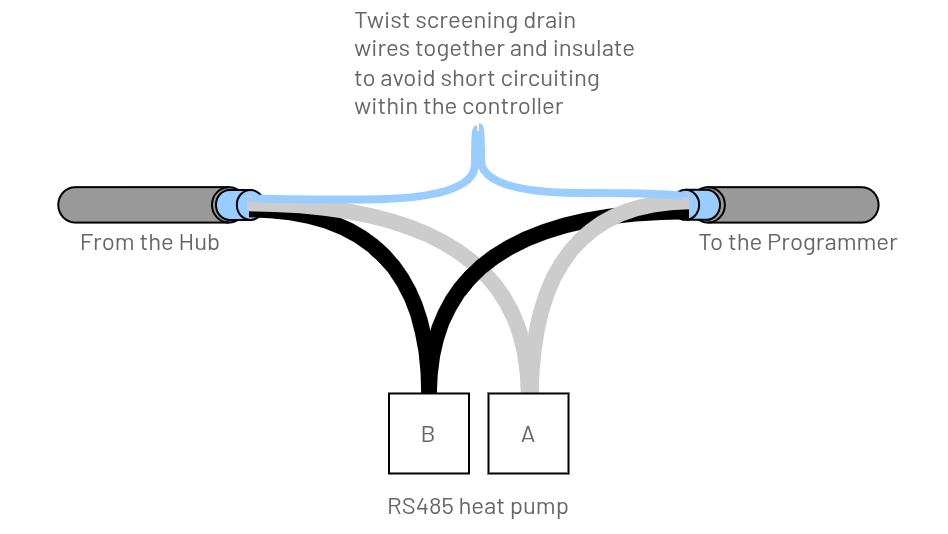

Clivet in the middle of the RS485 cable run	Clivet at the end of the RS485 cable run
Guidance Connect both screened drain wires together, insulate and carefully locate it at the edge of the PCB to reduce the chance of a short-circuit.  RS485 termination within the Passiv Programmer (see the Installation guide page 9)	Guidance Do NOT use the RS485 termination within the Passiv Programmer (see the Installation guide page 9)
